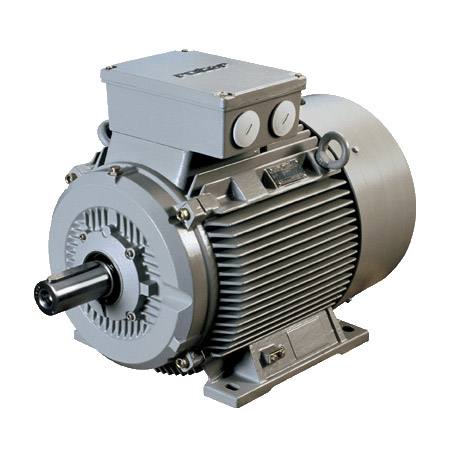

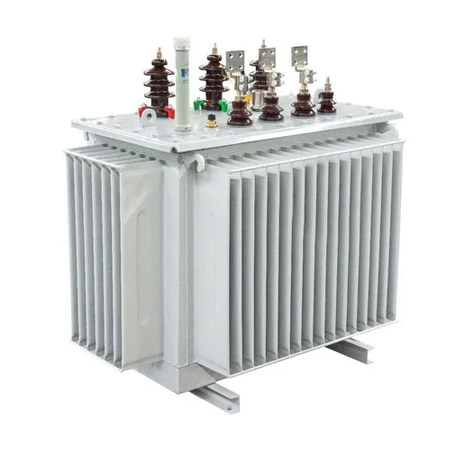

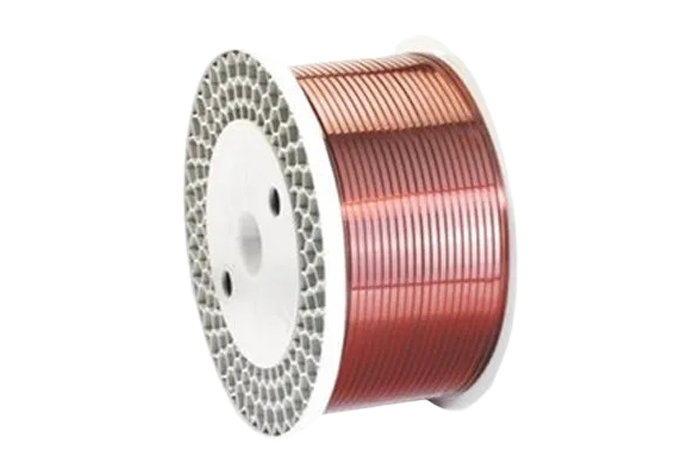

Enameled Aluminum Conductor is insulated with a varnish and generally used for electrical applications. Most times enameled Conductor is wound in different shapes of coils to generate magnetic force for motors, transformers, magnets etc. Shera is using best quality EC Grade Aluminum and Varnish material procured from renowned manufactures.
Width : | 3 mm to 25 mm |
Thickness : | 0.5 mm to 4 mm |
ROUND : | Diameter : 0.3 mm to 5 mm |
RECTANGLE STRIPS & ROUND WIRES | |
Standards | EN, ASTM, DIN |
Grade | EC Grade |
Temper | Soft |
Enamel Type | Terebec / Isomelt |
Product | Chemical | Viscosity by 23 C (Mpa.s) |
Solid Content(% by wt.) | Recommended for wire size (mm dia) | Class of Wire C | Distinctive properties or wire enamel/enamelled wire | Relevant specification for wires | ||
Terebec 227 -35 | Modified Polyester | 110-135 | 34-36 | 0.2 - 5.0 | 130 | Excellent Flexibility & adherence | IS 13730-34 IEC 60317-34 | ||
Terebec 256-40 | Modified Polyester | 600-800 | 39-41 | 0.05-2.0 | 155 | Low viscosity excellent heat shock | IS 13730-3 IEC 60317-3 | ||
Terebec TR543-38 | THEIC Polyesterimide | 750-850 | 37-39 | 0.05-1.6 | 180 | High tan & bending point and cut through property UL approved | IS 13730-8 IEC 60317-8 | ||
Isomelt 1566 M 30 | Polyurethane | 20-32 | 29-30 | 0.05-0.8 | 155 | High processing speeds good solder ability high tan |
IS 13730-20 IEC 60317-20 | ||
1380-29 | Polyurethane | 95-145 | 28-30 | 0.1-0.4 | 180 | High processing speeds good solder ability high tan |
IEC 60317-51 | ||
1380-25 ml | Polyurethane | 45-75 | 24-26 | 0.02-0.5 | 180 | High processing speeds good solder ability high tan |
IEC 60317-51 | ||
Terebec TR 543-38 Allotherm 602L35 | THEIC Polyesterimide+polymideimide | 750-850 650-800 |
37-39 34-36 |
0.315-1.6 | 200 | Excellent hermetic & burnout resistance high speed wind ability | IS 13730-13 IEC 60317-13 | ||
Terebec SL225-40 A AL1013 BV/35 | THEIC Polyesterimide+polymideimide | 440-540 700-1500 |
39-41 34-36 |
0.315-3.0 | 200 | Excellent hermetic resistance improved mechanical properties | IS 13730-13 IEC 60317-13 | ||
Terebec FN | Polyesterimide | 85-100 | 32-34 | 2.0-5.0 mm dia & upto 60 Sq mm rect | 155 | Good adherence for rectangular wires | IS 13730-3 /IEC 60317-3 IS 13730-16 /IEC 60317-16 |
||
Terebec Mt533-36PA | THEIC Polyesterimide | 80-90 | 35-37 | 1.6-5.0 mm dia & upto 60 Sq mm rect | 180 | Excellent adhesion heat shock & thermal resistance | IS 13730-8 /IEC 60317-8 IS 13730-28 /IEC 60317-28 |
