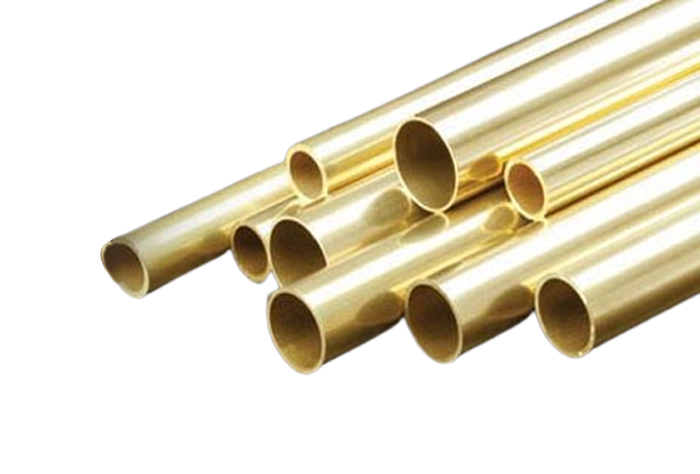

Brass Tubes are well recognized for their superior corrosion resistant finish, high wear resistance as well as low friction coefficient against steel.
| OUTER DIAMETER (OD): | 20 mm to 100 mm |
| WALL THICKNESS: | 3 mm to 10 mm |
| Standards | EN, ASTM, DIN |
| Shapes | Round Tube |

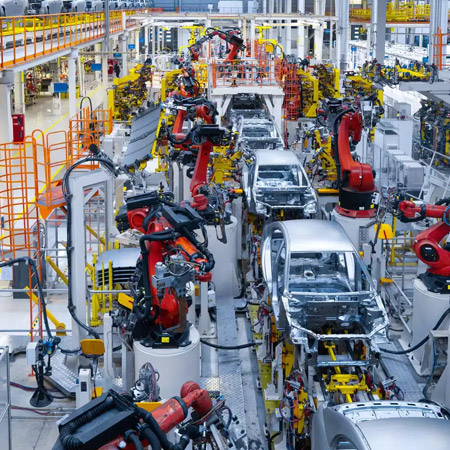

Automobile Industry

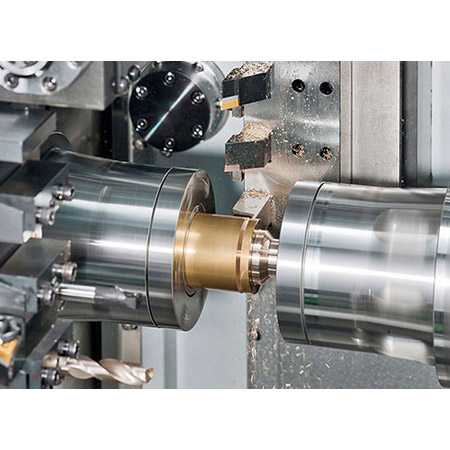

Machining Component Manufacturing

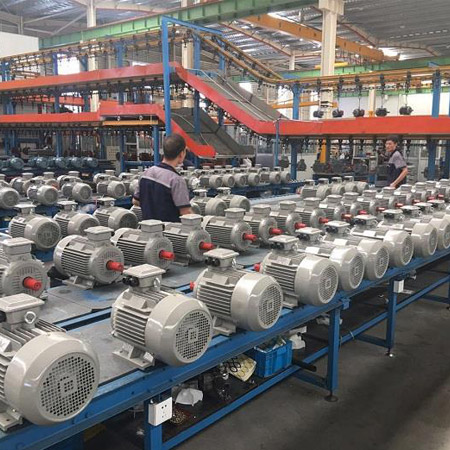

Motor Manufacturing

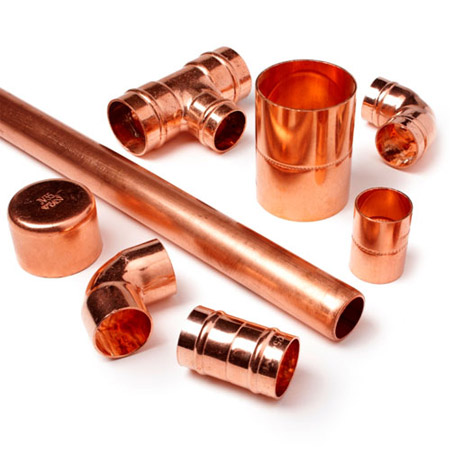

Plumbing Applications

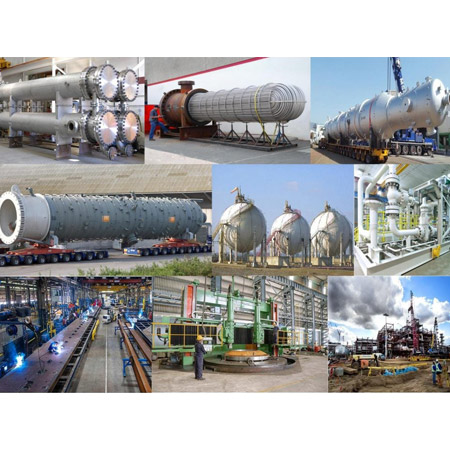

Heavy Engineering Industry

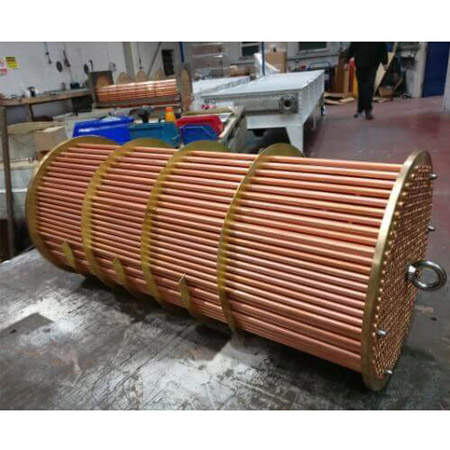

Heat Exchangers

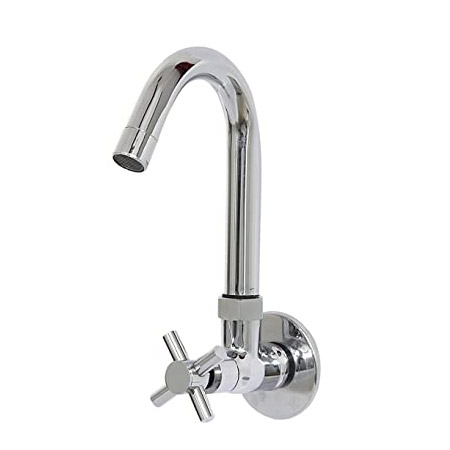

Sanitary Fittings & Accessories
Agricultural Equipment
| SPECIFICATION | COMPOSITION | PHYSICAL PROPERTIES | |||||||||||||||
| ALLOYS | IS | ASTM | BS | JIS | CU | Pb(Max) | Fe | Sn | Zn | Al | Mn | Ni | Others | * Tensile Strength N/mm2 (min) |
* % Elongation (Min) |
* Hardness , HV 5 |
|
| 63/37 Brass | IS:407 TYPE - II | B-135, C 27400 | - | H-3300, C 2740 |
61/64 | 0.07 | 0.05 Max | - | - | - | - | - | - | 300 | 35 | 80-100 | |
| ADMIRALTY BRASS | IS: 1545 [CuZn30SnIAs) |
B-III, C 44300 | 2871/Pt -3, CZ III |
H-3300, C 4430 |
69/71 | 0.90/1.2 | Balance | - | - | - | As - .02/.10 | 300 | 35 | 80-100 | |||
| ALUMINIUM BRASS | IS: 1545 [CuZn20SnI2As) |
B-III, C 68700 | 2871/Pt-3, CZ II0 |
H-3300, C 6870 |
76/78 | - | 1.80 to 2.2 | - | - | 320 | 35 | 85-110 | |||||
| 70/30 ARSENICAL BARSS | IS:407 TYPE - I | B-III, C 26000 | 2871/Pt-2, CZ 126 | H-3300, C 2600 |
69/71 | - | - | - | - | 300 | 35 | 80-100 | |||||
