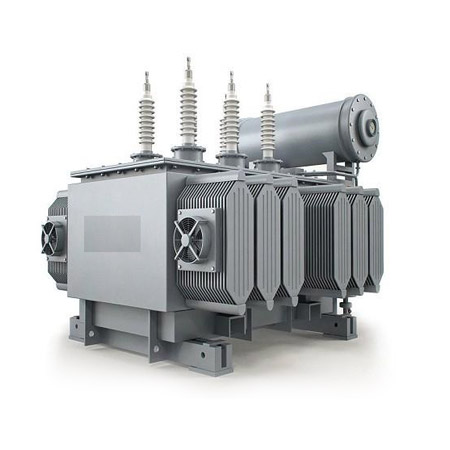

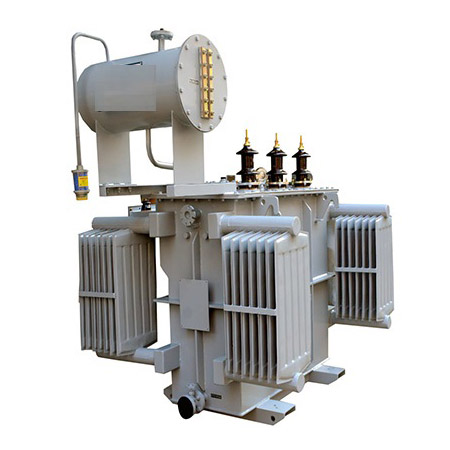

Paper covered Aluminum Conductors are principally used for winding coils of transformers and welding machines. Chemical, mechanical and thermal properties of various types of paper and their layered thickness define the properties of conductivity for specific requirements. Shera is using best quality EC Grade Aluminum and paper covering procured from renowned manufactures.
Width : | 3 mm to 30 mm |
Thickness : | 0.8 mm to 10 mm |
ROUND : | Diameter : 0.5 mm to 6 mm |
RECTANGLE STRIPS & ROUND WIRES | |
Standards | EN, ASTM, DIN |
Grade | EC Grade |
Temper | Soft |
Paper Covering Type | Kraft /Crepe/ TUP |
Number of Paper Layers | DPC/TPC/MPC |
TYPE | Grade | Thickness(mm) | Tensile (Nm/g) | Density | BDV (Kv/mm) | Specific Properties | |||
Kraft Paper | 1.5 | MD 192 CD 19 | 0.79 | 10.5 | General Purpose for Oil Filled Transformer | ||||
2 | MD 59 CD 13 | 0.81 | 1.2 | ||||||
2.5 | MD 199 CD 19 | 0.83 | 10.3 | ||||||
Aramide Paper(Nomex) | 410 | 2 | MD 43 XD 19 | 0.72 | 18 | Dry type application, High level electrical, chemical, thermal and mechanical property for different type usage | |||
411 | 5 | MD 18 XD 9 | 0.3 | 9 | |||||
Crepe Paper | 0.15-5 | As in Original Paper | 1.25 - 1.75 times craft paper | 10.2 | Stretchable, suitable for rectangular winding applications |
